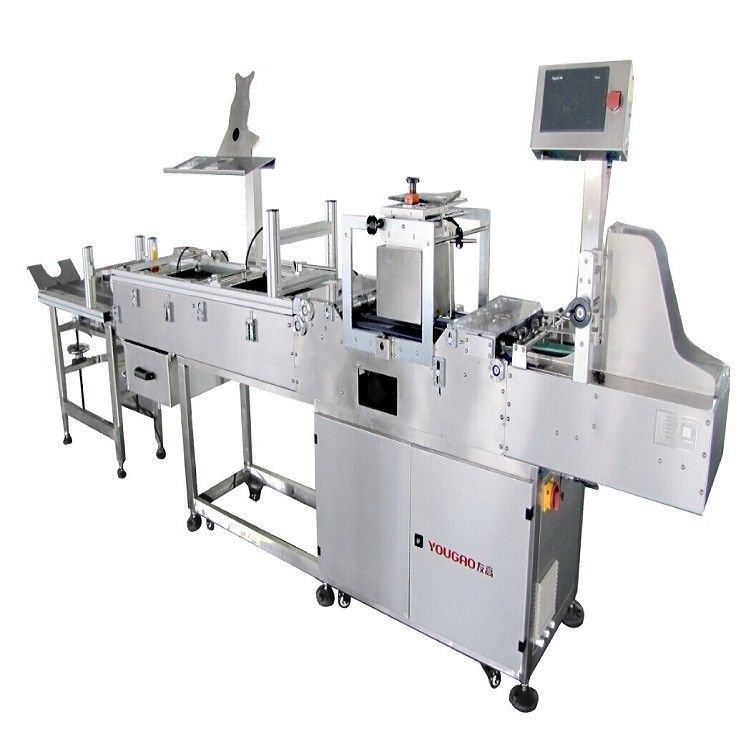

Product Detection Rejection Carton Trace And Track System
Machine configuration:feeder and coding module, automatic receiving module,auto rejection module,Electrical and control module,visual detection system
1,Feeder and coding module :
a,feeder method:vertical type
b,speed:5-30m/min
c,adjustment type:lead screw adjust
d,speed regulation type:variable frequency
2,Automatic receiving module:
a,adjustment type:lead screw adjust
b,speed regulation type:variable frequency
3,Auto rejection module:
a,adjustment type:lead screw adjust
b,speed regulation type:variable frequency
4,Electrical and control module
a,PLC control ,Screen touch operation
b,independent electric control cabinet
c,Screen touch stand
5,Visual detection system(option choice)
a,OCR
b,one-dimensional detection
c,two-dimensional detection
6,Main configuration:
a,Motor brand:ZHONGDA
b,Invertor brand :Schneider
c,Screen touch ,PLC brand:Schneider
b,Electric road brand:AIRTAC
e,camera brand :YOUGAOSEE
f,Carbon steel welded
7,Scope of product:carton
a,length :400-1100mm
width:300-1000mm
thickness:6-25mm
8, loading
< 850mm
Production display:
Packaging/Shipping
Packaging Details
carton package :
weight:
Port
shanghai shenzhen guangzhou
Our services:
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
