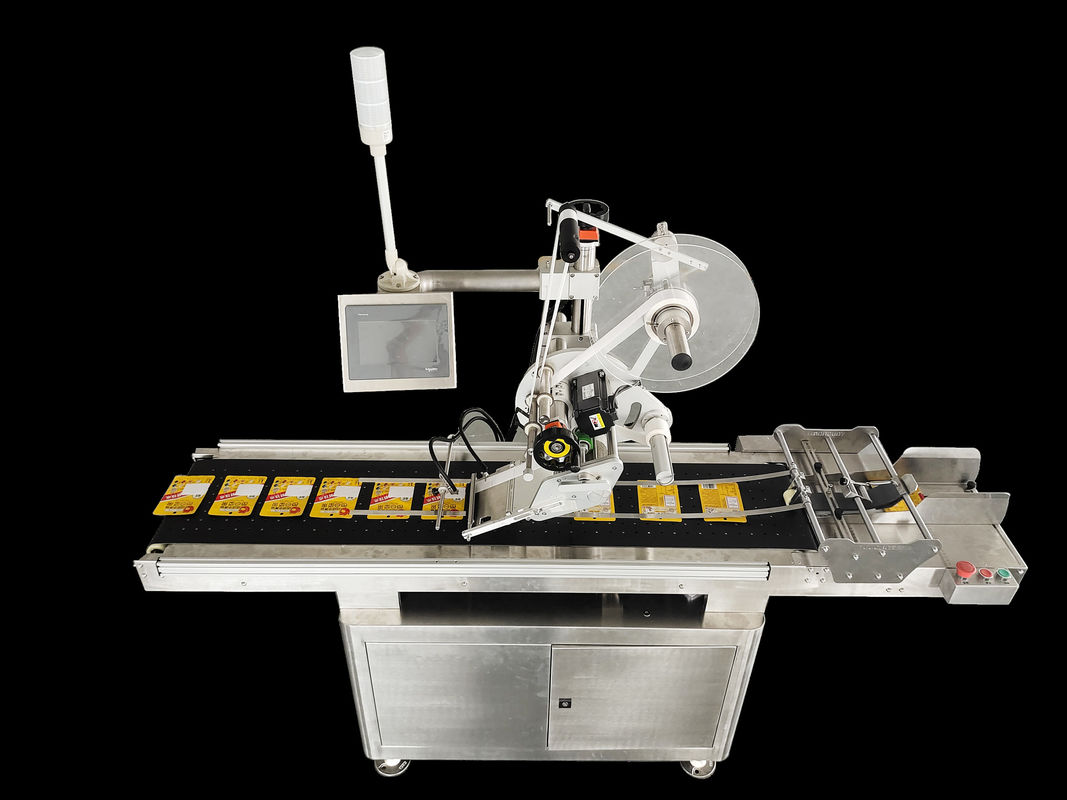

Integrated Paging Conveyor With Labeling Machine

Integrated paging conveyor with labeling machine

Suitable for labeling of various types of prefabricated packaging bags, such as food packaging bags, cosmetic packaging bags and rice bags, etc

1.1 Machine Size:2000*400/350*850MM;
1.2 Separated Size:Length:60-320mm,Width:80-350mm, Thickness:0.2-5mm ;
1.3 Paging model:Friction Type;
1.4 Feeding Speed:5-40m/min,Conveyor Speed:5-60m/min;
1.5 Feeding Part:120W, JSCC Motor, Variable Frequency;
Conveyor Part:200W JSCC Motor , Variable Frequency;
1.6 Conveyor Part: Vacuum adsorption,Power: 1.5KW;
2.2 Label Size:Sticker Label,height 15~150mm,Width 30~150mm,Thickness ≥5μm,
2.3 Label roller:Inner hole diameter φ76mm,Outer Diameter≤φ350mm
2.4 Maximum tag speed:55m/min;
3.1 General accuracy of labeling (specific to product)
3.1.1 Label height<50mm
Labeling accuracy:±1.5mm(Out label speed 10~25m/min,Labeled Speed 10~25m/min)
Labeling accuracy:±2.0mm(Out label speed 25~45m/min,Labeled Speed 25~40m/min)
Labeling accuracy:±3.0mm(Out label speed 45~55m/min,Labeled Speed 40~50m/min)
3.1.2 50≤Label height≤100mm
Labeling accuracy:±3.0mm(Out label speed 10~55m/min,Labeled Speed 10~50m/min)
3.1.3 Label Height>100mm
Labeling accuracy:±(Label length×3%)mm(Out label speed 10~55m/min,Labeled Speed 10~50m/min)
3.2 Labeler Motor/Drive Brand:750W Scheneider
3.3 Labeled sensor brand: Omron;
3.4 Voltage:AC220V±10%;Power:2.6KW;Net Weight:220KG
